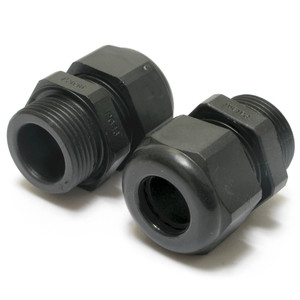

Strain Relief (Cable Gland) Liquid-Tight
Rutab
$0.95
Below are the available bulk discount rates for each individual item when you purchase a certain amount
- Buy 10 - 24 and get 10% off
- Buy 25 - 49 and get 12% off
- Buy 50 or above and get 15% off
(No reviews yet)
Write a Review
Rutab
Strain Relief (Cable Gland) Liquid-Tight
Strain Relief (Cable Gland) Liquid-Tight
Cable Range: 10mm - 14 mm Diameter Cable
Connection Thread: PG16/22.5
Suggested Clearance Hole for Non-Threaded Mounting: 0.88"
Body Length: 1.1"
Thread Length: 0.39"
Wrench Flat: 27mm
Material: Polyamide PA6 V-2
Sealing Ring: Polychloroprene-Nitrile Rubber CR/NBR
Color: Gray RAL 7001
Protection Class: IP68 - 5 Bar (72.5 PSI)
Temperature Range: -20° C - 100° C
Test Standard: UL514B
UL / CSA-File: E140310
Halogen-Free
Locking Nut Not Included
Rutab
1459922
Cable Range: 10mm - 14 mm Diameter Cable
Connection Thread: PG16/22.5
Suggested Clearance Hole for Non-Threaded Mounting: 0.88"
Body Length: 1.1"
Thread Length: 0.39"
Wrench Flat: 27mm
Material: Polyamide PA6 V-2
Sealing Ring: Polychloroprene-Nitrile Rubber CR/NBR
Color: Gray RAL 7001
Protection Class: IP68 - 5 Bar (72.5 PSI)
Temperature Range: -20° C - 100° C
Test Standard: UL514B
UL / CSA-File: E140310
Halogen-Free
Locking Nut Not Included
Rutab
1459922
